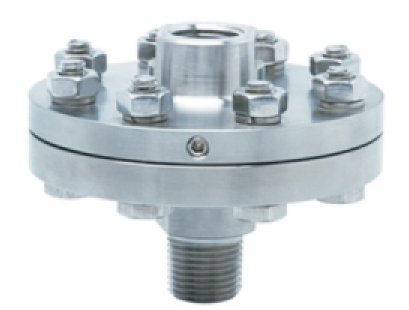

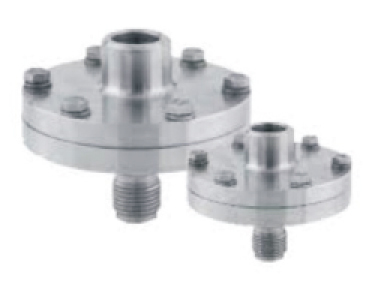

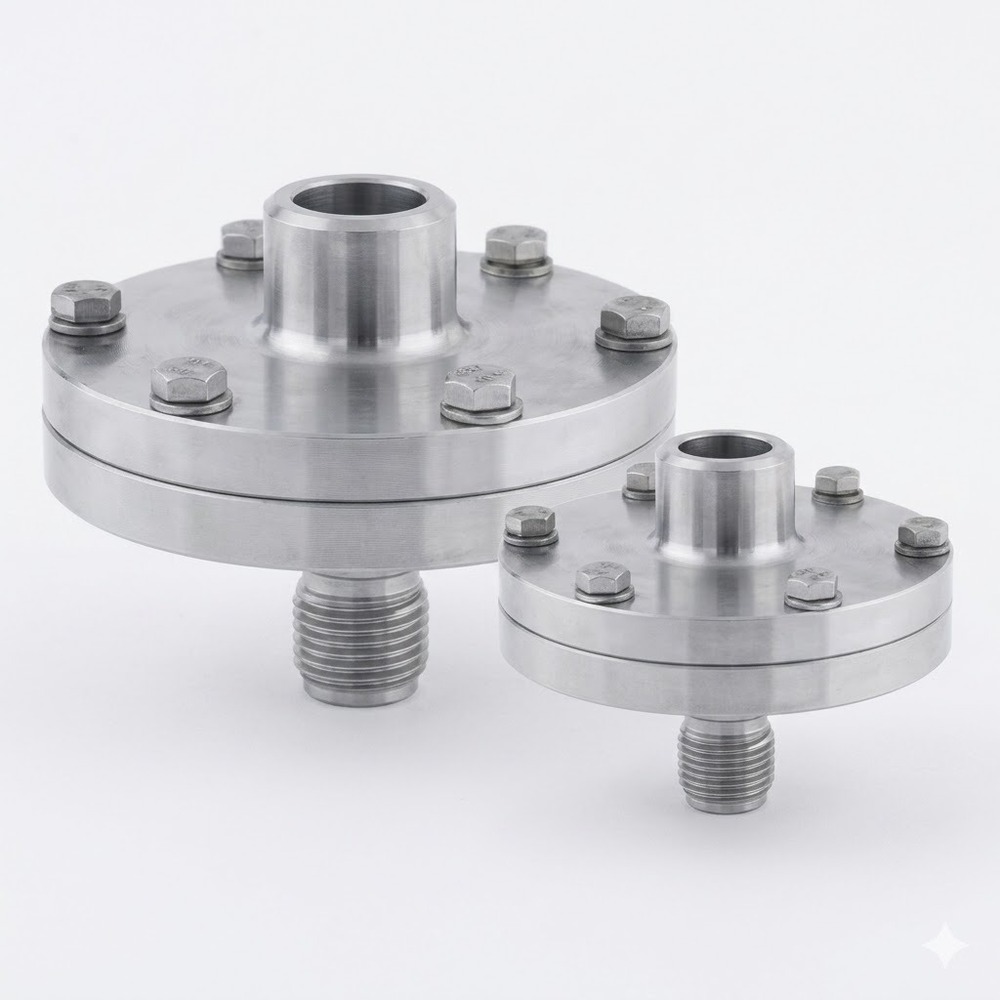

Diaphragm Seal

Get a Price/Quote

MOQ : 10 Pieces

Diaphragm Seal Specification

Hardness
40 to 90 Shore A

Feature
Leak-proof, Anti-corrosive, High chemical resistance

Tolerance
0.1 mm

Material
PTFE, SS316, Monel, Hastelloy, Tantalum, and Rubber options

Style
Flanged, Welded, Threaded

Shape
Round, Diaphragm-type

Temperature
-40C to 250C

Application
Used with pressure gauges, transmitters and switches for isolation in process industries

Media Compatibility
Acids, Alkalis, Oil, Gas, Steam

Size Range
1/2 inch to 6 inch

Mounting
Inline or Direct Mount

Connection Type
Threaded, Flanged, Clamp

Surface Finish
Ra 0.4 m

Pressure Rating
Up to 6000 psi

Diaphragm Thickness
0.1 mm to 1.0 mm

Diaphragm Seal Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Diaphragm Seal

Unlock phenomenal value with this must-have Diaphragm Seal, crafted for top-notch performance across a remarkable pressure range up to 6000 psi. Available in sizes from 1/2 inch to 6 inch and styled in flanged, welded, or threaded options, it boasts instant savings on maintenance costs with its leak-proof and anti-corrosive design. Manufactured using the finest PTFE, SS316, Monel, Hastelloy, Tantalum, and premium rubber, it's compatible with acids, alkalis, oil, gas, and steam. A deal not to miss for every process industry professional from India's trusted manufacturer and supplier!

Key Attributes: Material, Media, and Exceptional Features

Experience unrivaled versatility with our Diaphragm Seal, engineered using materials such as PTFE, SS316, Monel, Hastelloy, Tantalum, and robust rubber. Adapted to perform in harsh conditions, it handles aggressive media including acids, alkalis, oil, gas, and steam with exceptional chemical resistance. With features like a high-precision finish (Ra 0.4 m), superior hardness, leak-proof performance, and anti-corrosive properties, this seal is fit for use with pressure gauges, transmitters, and switches for reliable process isolation.

Packaging, Order Fulfilment, and Logistics Info

Our advanced packaging guarantees product integrity during transit, ensuring your diaphragm seals arrive flawless and ready for operation. Each order is meticulously completed to meet customer specifications, with prompt outlay and clear communication throughout the process. Samples are available as per our detailed sample policy for peace of mind before bulk purchase. Orders ship via the nearest FOB port for swift, on-schedule delivery, reflecting our commitment to efficient order completion and dependable supply chain management.

FAQ's of Diaphragm Seal:

Q: How does this diaphragm seal benefit my process instrumentation?

A: The diaphragm seal provides a reliable barrier between aggressive process media and sensitive pressure instruments, preventing damage, extending instrument life, and ensuring accurate measurements in demanding environments.

Q: What materials are available for the diaphragm seal, and how do I choose?

A: We offer diaphragm seals in PTFE, SS316, Monel, Hastelloy, Tantalum, and rubber. The material selection depends on your application's chemical compatibility, pressure, temperature, and industry standards. Our team can help recommend the optimal choice.

Q: Where can I use this diaphragm seal?

A: These diaphragm seals are suitable for pressure measurement in process industries, particularly where isolation from corrosive or viscous media is critical-such as in chemical, petrochemical, oil and gas, and food processing sectors.

Q: What is the mounting process for these diaphragm seals?

A: Installation is straightforward with inline or direct mounting. Connection types include threaded, flanged, and clamp options, allowing seamless integration with your existing instruments and pipeline setups.

Q: When should I consider replacing my diaphragm seal?

A: It is recommended to replace the diaphragm seal if you notice any signs of wear, leaks, or compromised performance, or as part of a regular maintenance schedule in highly aggressive media environments.
