Instrumentation Fiting

Discover the exceptional quality of our Instrumentation Fiting, designed to deliver incomparable performance in diverse applications requiring precision and durability. As a trusted manufacturer and supplier with over 10 years of experience, we offer a range of products including Male Connector, 01_Air Header, Union Fitting, 02_Air Header, and SS Elbow, each crafted to provide astounding reliability and functionality. Our Instrumentation Fiting boasts superlative features such as leak-proof design, corrosion resistance, customizable configurations, ease of installation, and unrivaled longevity, making them a hot deal for businesses across All India. With the ability to meet demanding standards and provide versatility for use in critical instrumentation setups, these fittings stand out as the ultimate solution for efficiency and safety. Whether you're looking for unbeatable quality or a sale option that perfectly aligns with your requirements, our products ensure innovative design and robust performance for every application. Invest in our premium offerings and experience firsthand why our fittings are considered a market-leading choice in the instrumentation industry.

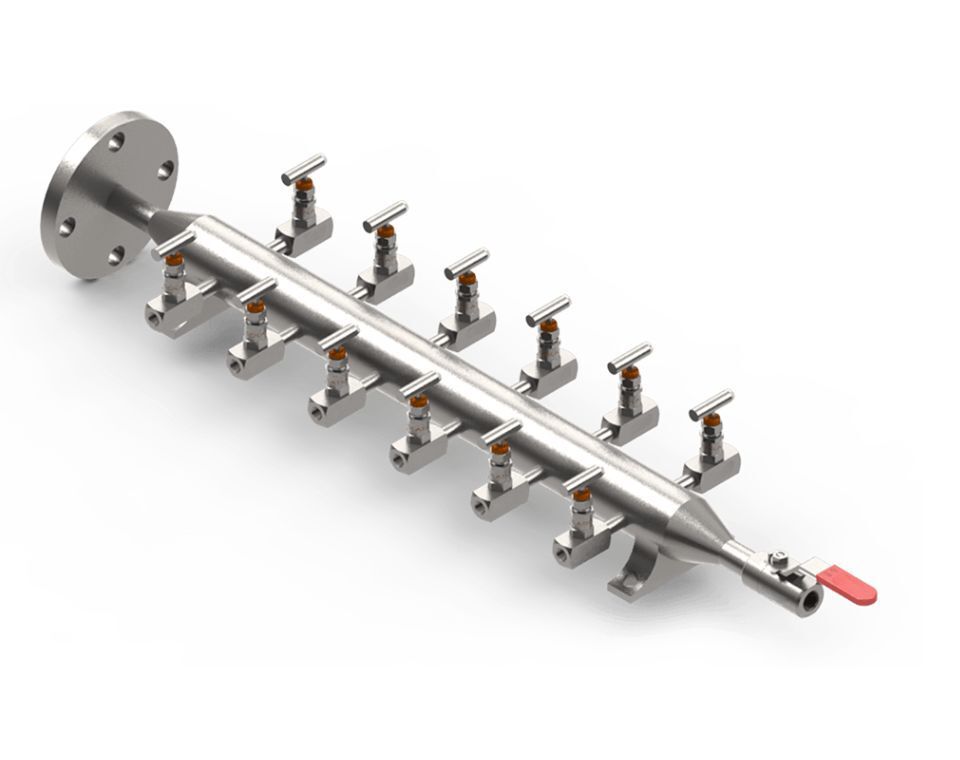

01_Air Header

MOQ : 10 Pieces

  • Accessories
  • Mounting Brackets, End Plugs, and Name Plate
  • Application
  • Distribution of instrument air or gas in chemical, petrochemical, or process industries
  • Condition
  • New
  • Dimension (L*W*H)
  • Customizable, Available in Standard Lengths (500mm to 2000mm)
  • Efficiency
  • Highly Efficient Air Distribution
  • Function
  • Distributes air from a single supply to multiple outputs
  • Humidity
  • 95% RH
  • Main Material
  • Stainless Steel (SS304/316), Carbon Steel
  • Mounting Type
  • Wall / Rack Mounted
  • Operating Temperature
  • -20C to 200C
  • Processing Type
  • Other, Fabricated
  • Protection Level
  • Weatherproof

02_Air Header

MOQ : 10 Pieces

  • Accessories
  • Mounting Clamps, End Plugs
  • Application
  • Distribution of instrument air to multiple points
  • Condition
  • New
  • Dimension (L*W*H)
  • Customized as per requirement
  • Efficiency
  • High Efficiency
  • Function
  • Air Distribution
  • Humidity
  • Up to 95% RH, Non-condensing
  • Main Material
  • Stainless Steel / Carbon Steel
  • Mounting Type
  • Wall / Panel Mounted
  • Operating Temperature
  • -20C to 80C
  • Power Mode
  • Manual
  • Processing Type
  • Other, Fabricated
  • Protection Level
  • IP54

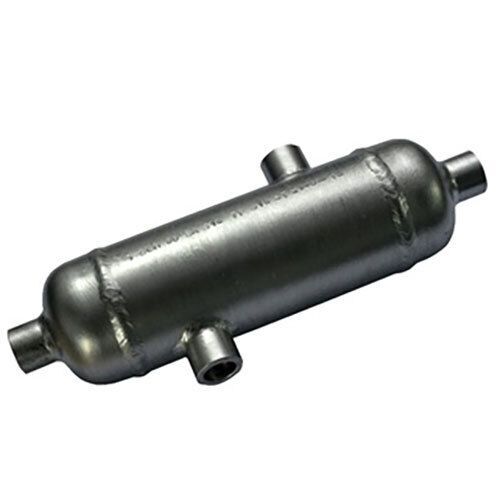

01_Condensate Seal Pot

MOQ : 10 Pieces

  • Application
  • Used to collect and temporarily store condensate from steam lines and sample lines to prevent direct steam contact with instrumentation
  • Condition
  • New
  • Dimension (L*W*H)
  • Varies as per requirement, typically 150mm x 80mm x 450mm
  • Efficiency
  • 100% for designed purpose
  • Function
  • To separate and store condensate, protecting pressure and flow instruments
  • Humidity
  • Suitable for industrial atmospheric conditions
  • Main Material
  • Carbon Steel, Stainless Steel (SS304/316), Alloy Steel
  • Mounting Type
  • Inline/Vertical/Horizontal (as per piping arrangement)
  • Operating Temperature
  • up to 400C (depending on material selection)
  • Processing Type
  • Other, Fabricated / Seamless
  • Protection Level
  • Standard industrial grade

01_Pressure Gauge

MOQ : 10 Pieces

  • Application
  • Measurement of fluid, gas, or vapor pressure in pipelines or tanks
  • Condition
  • New
  • Dimension (L*W*H)
  • 63 mm diameter (standard size)
  • Function
  • Indicate Pressure (Range 0-100 psi)
  • Humidity
  • Up to 95% RH (Non-Condensing)
  • Mounting Type
  • Bottom/Rear (Panel/Surface)
  • Operating Temperature
  • -20C to 60C
  • Protection Level
  • IP40

Male Connector

MOQ : 10 Pieces

  • Accessories
  • No accessories included
  • Application
  • Industrial Hydraulic and Pneumatic Systems
  • Condition
  • New
  • Dimension (L*W*H)
  • Varies by Thread Size
  • Function
  • Connects Male Threaded Pipes
  • Humidity
  • 0-95% RH non-condensing
  • Main Material
  • Stainless Steel / Brass
  • Mounting Type
  • Threaded
  • Operating Temperature
  • -20C to 120C
  • Power Mode
  • Manual
  • Processing Type
  • Other, CNC Machined
  • Protection Level
  • IP20

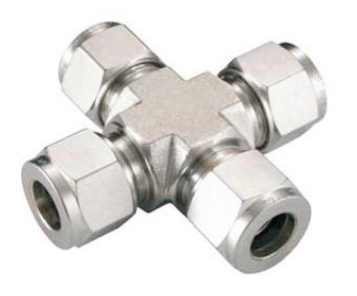

Cross Fitting

MOQ : 10 Pieces

  • Application
  • Plumbing, Pipe Fittings, Industrial Fluid Control
  • Condition
  • New
  • Dimension (L*W*H)
  • Varies (Standard sizes available as per requirement)
  • Efficiency
  • High, Minimal Pressure Drop
  • Function
  • Joining four pipes at right angles
  • Humidity
  • Up to 95% RH - Non-condensing
  • Main Material
  • Stainless Steel
  • Mounting Type
  • Threaded or Socket Welded
  • Operating Temperature
  • -20C to 120C (Depending on Material)
  • Processing Type
  • Other, Casting or Forged
  • Protection Level
  • Corrosion Resistant

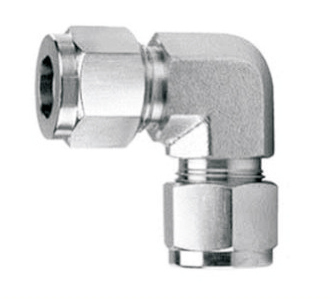

SS Elbow

MOQ : 10 Pieces

  • Application
  • Industrial piping, fluid handling, chemical and food industry fittings
  • Condition
  • New
  • Dimension (L*W*H)
  • Varies by size (e.g., 1/2 inch, 1 inch, etc.)
  • Efficiency
  • Highly efficient fluid flow due to smooth internal finish
  • Function
  • Provides directional change in piping system (usually at 90 or 45)
  • Humidity
  • Suitable for high humidity and corrosive environments
  • Main Material
  • Stainless Steel (Grade: 304/316 or as specified)
  • Mounting Type
  • Welded, threaded, or socket weld
  • Operating Temperature
  • Up to 800C (varies by grade)
  • Processing Type
  • Other, Cold/Hot forming and machining
  • Protection Level
  • Corrosion resistant

Female Connector

MOQ : 10 Pieces

  • Application
  • Electrical connections, cable termination
  • Condition
  • New
  • Dimension (L*W*H)
  • Varies by model (Standard: 2.5cm x 1cm x 1cm)
  • Frequency
  • 50/60 Hz
  • Function
  • Secure and reliable female electrical connection
  • Humidity
  • Up to 95% RH, non-condensing
  • Input Current
  • Up to 10A
  • Main Material
  • Brass/Nickel-plated Brass
  • Mounting Type
  • Panel Mount/Screw Mount
  • Operating Temperature
  • -20C to +80C
  • Output Voltage
  • Up to 250V
  • Phase
  • Single Phase
  • Power Mode
  • Manual
  • Processing Type
  • Other, Machined
  • Protection Level
  • IP20
  • Rated Voltage
  • 250V
  • Voltage
  • Up to 250V

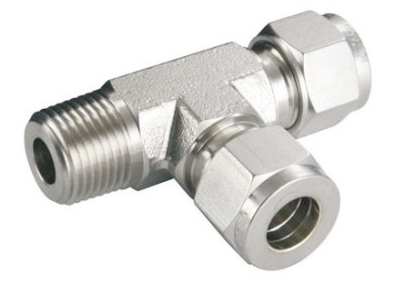

Steel Tee

MOQ : 10 Pieces

  • Application
  • Pipe fitting, plumbing, and industrial piping systems
  • Condition
  • New
  • Dimension (L*W*H)
  • Custom as per requirement
  • Efficiency
  • 100% mechanical
  • Function
  • Joining pipes at 90-degree angle
  • Humidity
  • Up to 95% RH (non-condensing)
  • Main Material
  • Steel
  • Mounting Type
  • Inline/Butt-welded/Screwed
  • Operating Temperature
  • -20C to 425C (depends on steel grade)
  • Power Mode
  • Manual
  • Processing Type
  • Other, Forged/Seamless/Welded

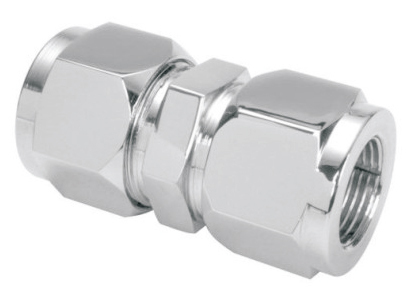

Union Fitting

MOQ : 10 Pieces

  • Application
  • Used for connecting two pipes or tubes in plumbing, pneumatic, and hydraulic systems
  • Condition
  • New
  • Dimension (L*W*H)
  • Varies by size (Refer to specification sheet)
  • Function
  • Pipe/tube connection
  • Humidity
  • Up to 95% RH (Non-condensing)
  • Main Material
  • Brass
  • Mounting Type
  • Inline
  • Operating Temperature
  • -20C to 120C
  • Processing Type
  • Other, Forged
